Iscar

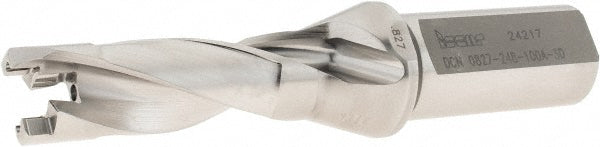

Indexable Drilling - Iscar 3260100
MFR# 3260100Series SumoCham
$526.63List $543.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3260100 indexable drilling. Series SumoCham.
Specifications
Body length3.7900in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size21
Maximum drill depth2.4800
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.8620
Minimum drill diameter0.8270
Overall length5.9900in
Shank diameter in1in
Shank length2.2000in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
