Iscar

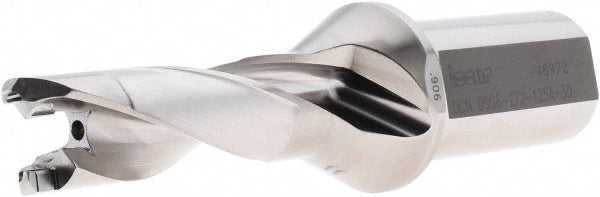

Indexable Drilling - Iscar 3260102
MFR# 3260102Series SumoCham
$581.53List $600.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3260102 indexable drilling. Series SumoCham.
Specifications
Body length4.1500in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size23
Maximum drill depth2.7200
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.9410
Minimum drill diameter0.9060
Overall length6.5100in
Shank diameter in1-1/4in
Shank length2.3600in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
