Iscar

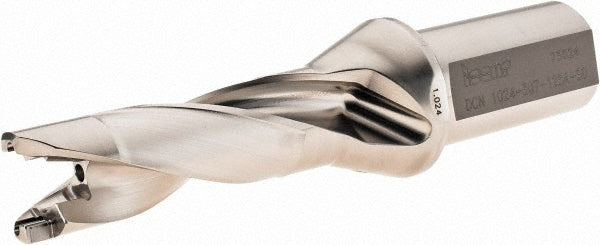

Indexable Drilling - Iscar 3260104
MFR# 3260104Series SumoCham
$660.81List $670.50
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3260104 indexable drilling. Series SumoCham.
Specifications
Body length4.7000in
Compatible insert styleICK; ICM; ICP
Coolant throughYes
Drill depth by diameter ratio3xD
Insert seat size26
Maximum drill depth3.0700
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter1.0590
Minimum drill diameter1.0240
Overall length7.0600in
Shank diameter in1-1/4in
Shank length2.3600in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
