Iscar

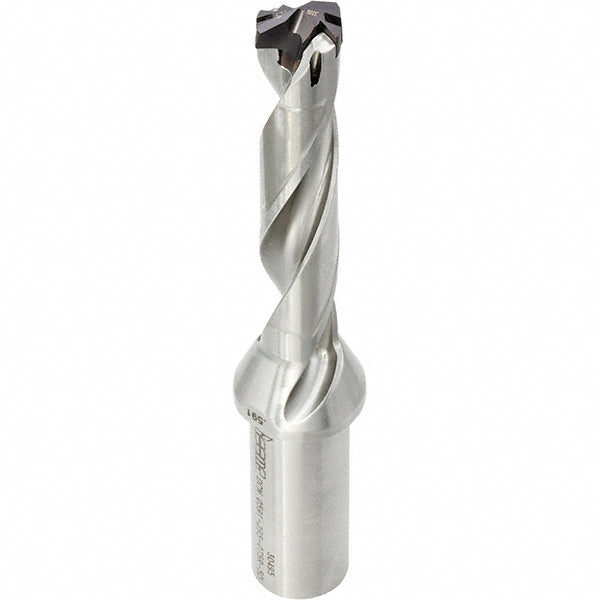

Indexable Drilling - Iscar 3260112
MFR# 3260112Series SumoCham
$767.08List $792.10
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3260112 indexable drilling. Series SumoCham.
Specifications
Body length6.7400in
Compatible insert styleICK; ICM; ICP
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size26
Maximum drill depth5.1200
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter1.0590
Minimum drill diameter1.0240
Overall length9.1000in
Shank diameter in1-1/4in
Shank length2.3600in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
