Iscar

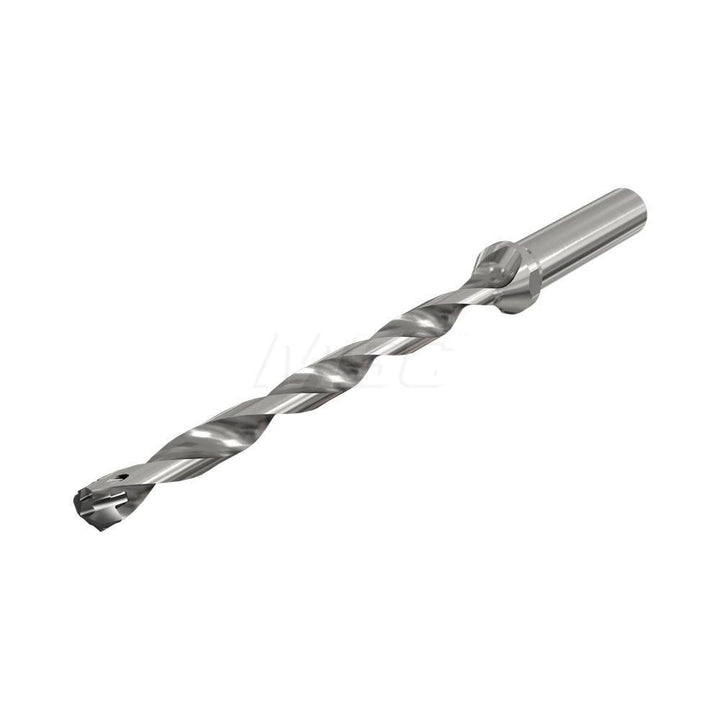

Indexable Drilling - Iscar 3323749
MFR# 3323749Series SumoCham
$412.92List $426.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3323749 indexable drilling. Series SumoCham.
Specifications
Body length5.1100in
Compatible insert styleFCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M; QCP-2M
Coolant throughYes
Drill depth by diameter ratio12xD
Flute length4.5600
Insert seat size9
Maximum drill depth4.5600
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter0.3900
Minimum drill diameter0.3740
Overall length6.8800in
Shank diameter in1/2in
Shank length1.7700in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN
Tool applicationHolemaking
