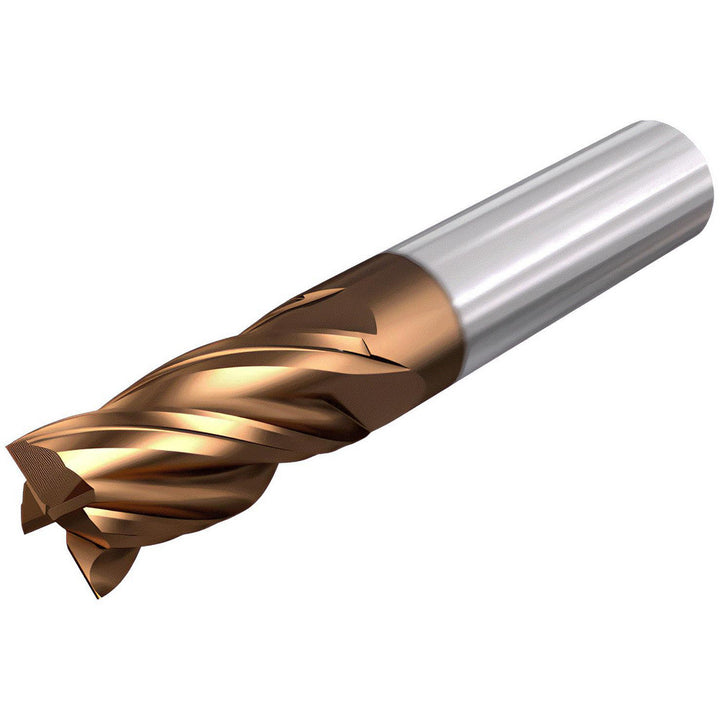

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3398017

Iscar

3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3398017

MFR# 3398017Cat# ECI-4 375-750/125C015VF3Series ECI-4-VF

$85.73List $102.80 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiCrSiN

Description

The Iscar 3398017 is a 3/8 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiCrSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3/4 length of cut, 3 overall length. Series ECI-4-VF.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiCrSiN
Coolant throughNo
Corner radius0.1250
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Length of cut in3/4
Length typeShort
Manufacturers catalog numberECI-4 375-750/125C015VF3
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/8
Number of flutes4
Overall length in3
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in1-1/4
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
