Iscar

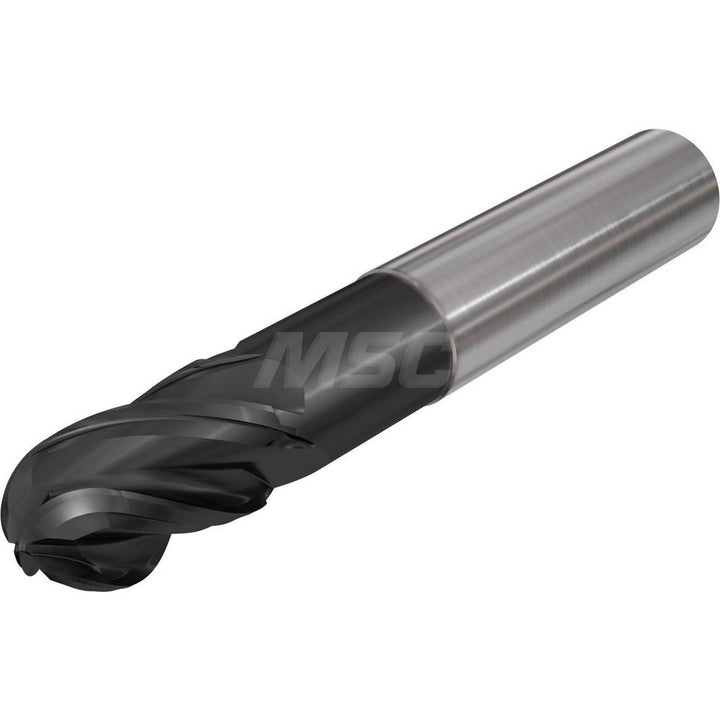

1/2" 4-Flute Solid Carbide Ball End Mill, TiAlCN - Iscar 3398308

MFR# 3398308Cat# EBI-4 500-1.25CVF3Series Flash Solid

$90.57List $108.60 Save 16%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingTiAlCN

Description

The Iscar 3398308 is a 1/2 4-flute Solid Carbide ball end mill with a TiAlCN finish for longer tool life. 1-1/4 length of cut, 3 overall length. Series Flash Solid.

Specifications

Coating finishTiAlCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1-1/4

Manufacturers catalog numberEBI-4 500-1.25CVF3

Mill diameter in1/2

Number of flutes4

Overall length in3

Shank diameter in1/2

Single or double endSingle

Variable helixNo

Variable indexYes
