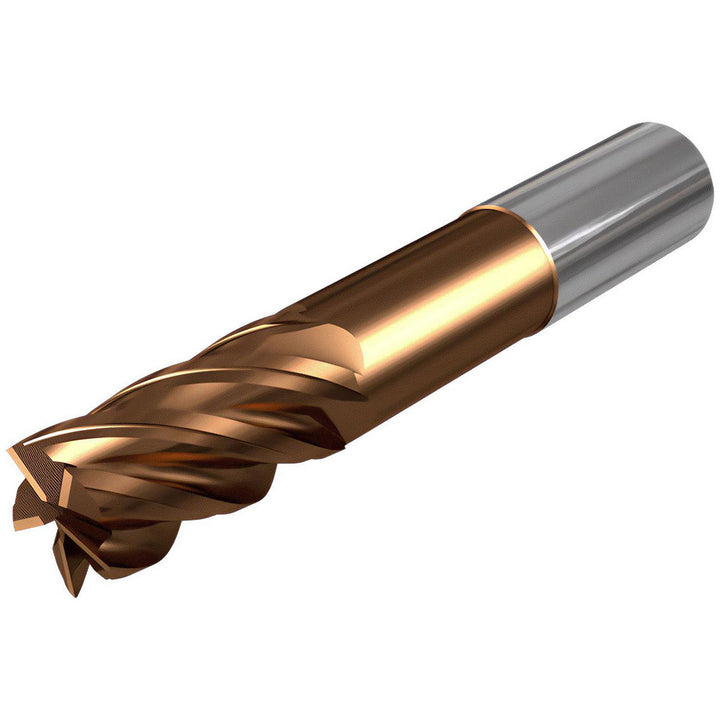

1/2" 5-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3398420

Iscar

1/2" 5-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3398420

MFR# 3398420Cat# ECI-4 1.0-1.5/3.0C125VF5Series ECI-5-VF

$87.41List $103.00 Save 15%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlTiCrSiN

Description

The Iscar 3398420 is a 1/2 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiCrSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 5/8 length of cut, 2-1/2 overall length. Series ECI-5-VF.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiCrSiN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral; Helical
For use withToolholder
Length of cut in5/8
Length typeShort
Manufacturers catalog numberECI-4 1.0-1.5/3.0C125VF5
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1/2
Number of flutes5
Overall length in2-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in5/8
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
