Iscar

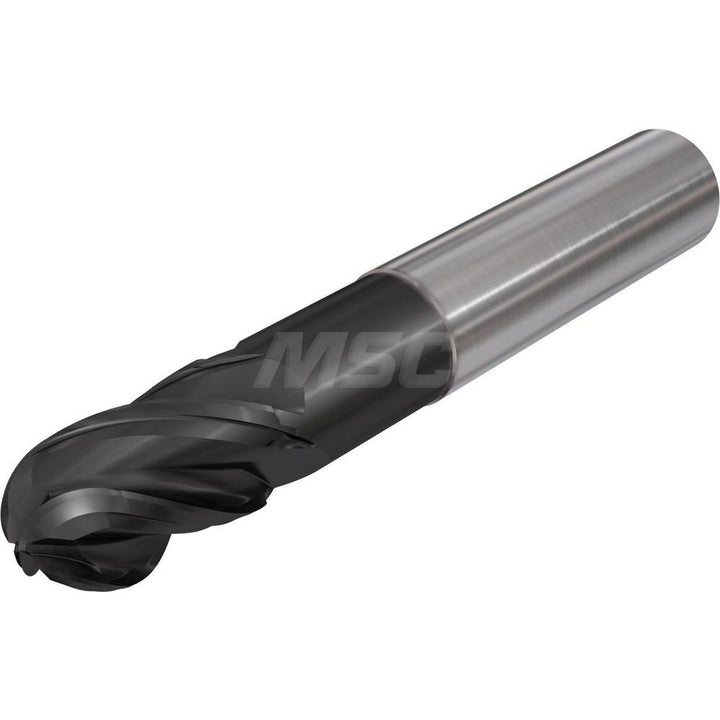

1/2" 4-Flute Solid Carbide Ball End Mill, AlTiCrSiN - Iscar 3398505

MFR# 3398505Cat# EBI-5 .5-2.5CVF5.Series Flash Solid

$153.61List $184.20 Save 16%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlTiCrSiN

Description

The Iscar 3398505 is a 1/2 4-flute Solid Carbide ball end mill with a AlTiCrSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 2-1/2 length of cut, 5 overall length. Series Flash Solid.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiCrSiN

Coating finish familyAlTiCrSiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in2-1/2

Manufacturers catalog numberEBI-5 .5-2.5CVF5.

Material removal typeRoughing & Finishing

Mill diameter in1/2

Number of flutes4

Overall length in5

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy

Reach length2.5000

Shank diameter in1/2

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
