Iscar

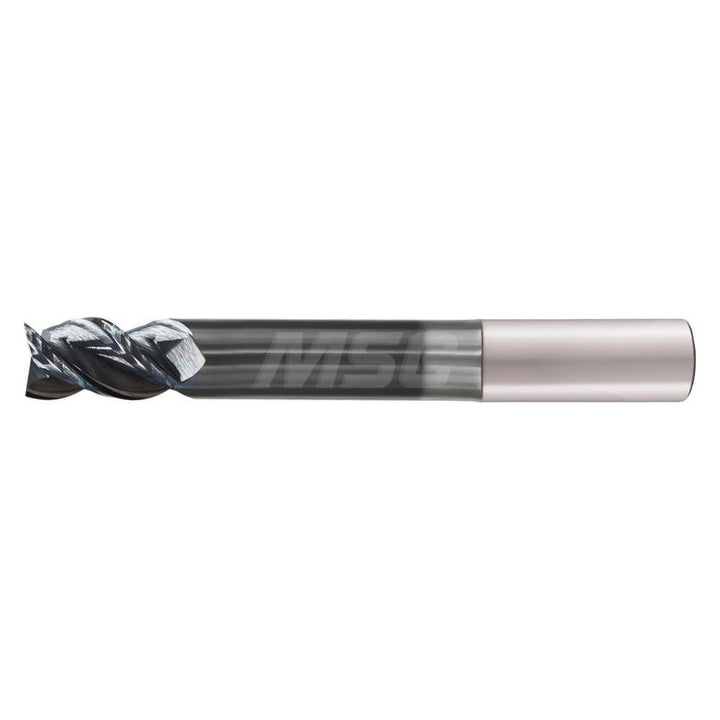

3/8" 3-Flute Solid Carbide Square End Mill, DLC - Iscar 3399002

MFR# 3399002Series ECAI-B3-EC

$85.18List $102.00 Save 16%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingDLC

Description

The Iscar 3399002 is a 3/8 3-flute Solid Carbide (Submicron) square end mill with a DLC finish for longer tool life. Suited for aluminum & non-ferrous. 3/4 length of cut, 4 overall length. Series ECAI-B3-EC.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDLC

Coating finish familyDLC

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in3/4

Material gradeSubmicron

Mill diameter in3/8

Number of flutes3

Overall length in4

Primary workpiece materialAluminum & Non-Ferrous

Reach length in2-1/8

Shank diameter in3/8

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
