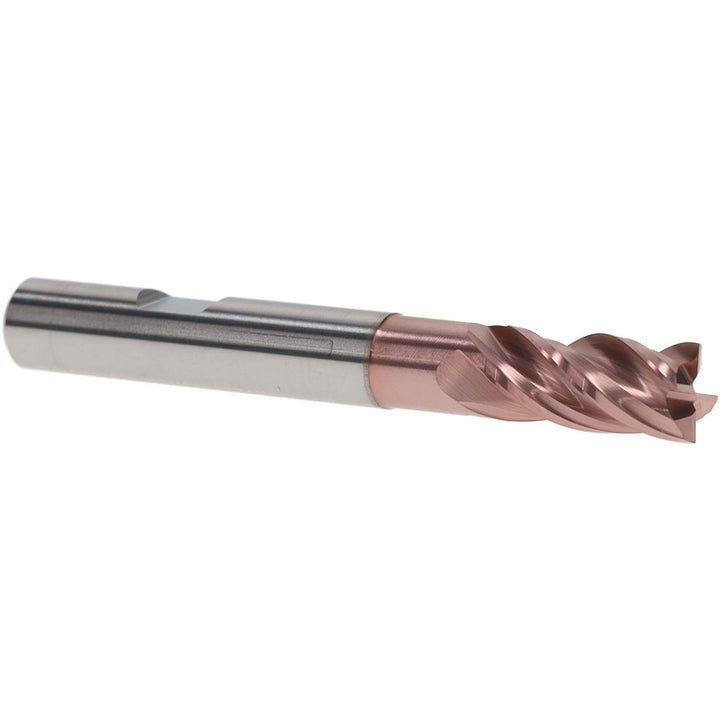

3/8" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3401266

Iscar

3/8" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3401266

MFR# 3401266

$74.72List $89.60 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingTiAlCN

Description

The Iscar 3401266 is a 3/8 4-flute Solid Carbide (Submicron) square end mill. 1-1/4 length of cut, 3 overall length.

Specifications

CentercuttingYes
Coating finishTiAlCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Material gradeSubmicron
Mill diameter in3/8
Number of flutes4
Overall length in3
Reach length in1-1/4
Shank diameter in3/4
Variable helixNo
Variable indexYes
