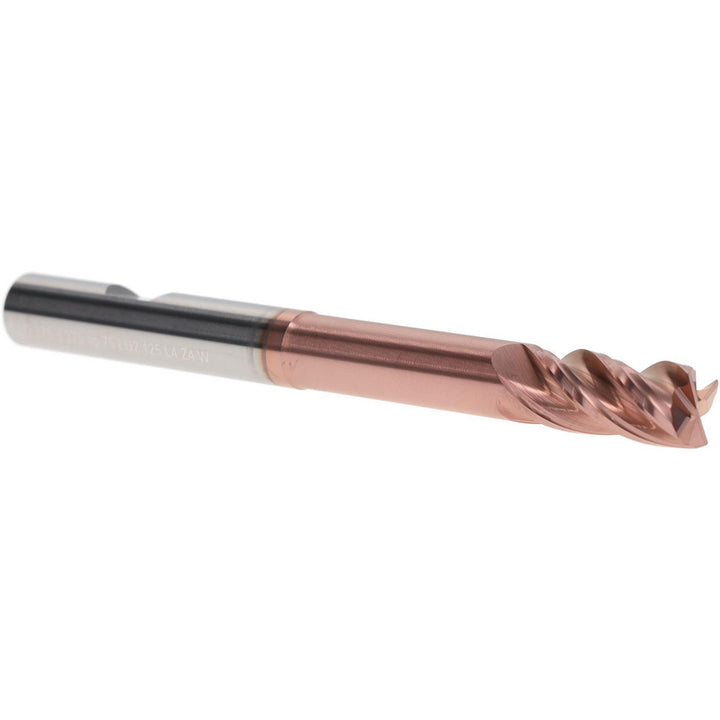

3/8" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3401268

Iscar

3/8" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3401268

MFR# 3401268

$92.74List $111.20 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingTiAlCN

Description

The Iscar 3401268 is a 3/8 4-flute Solid Carbide (Submicron) square end mill. 3/4 length of cut, 4 overall length.

Specifications

CentercuttingYes
Coating finishTiAlCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in3/4
Material gradeSubmicron
Mill diameter in3/8
Number of flutes4
Overall length in4
Reach length in2-1/8
Shank diameter in3/8
Variable helixNo
Variable indexYes
