0.4724" 6-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620622

Iscar

0.4724" 6-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620622

MFR# 5620622

$150.72List $193.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
MaterialSolid Carbide
CoatingTiAlN

Description

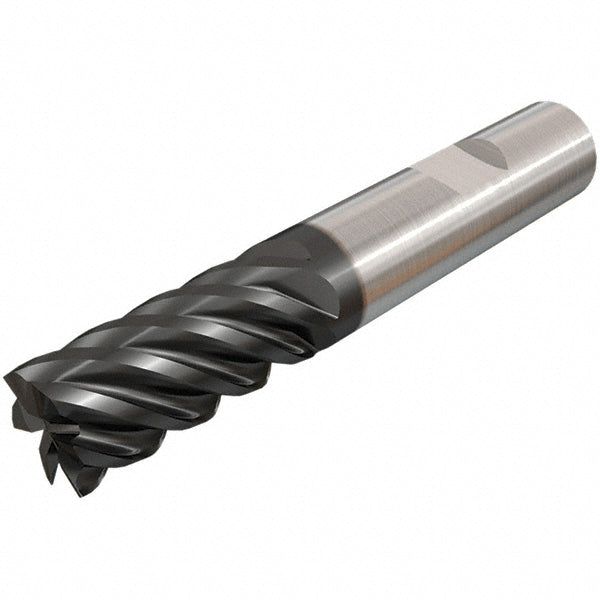

The Iscar 5620622 is a 0.4724 6-flute Solid Carbide (Submicron Grain) square end mill. 0.9843 length of cut.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut0.9843
Length typeRegular
Material gradeSubmicron Grain
Mill diameter0.4724
Mill diameter tolerance-0.032 to 0.059 mm
Number of flutes6
Overall length (mm)83.00
Shank diameter (mm)12.00
Shank diameter tolerance0.000/-0.011 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
