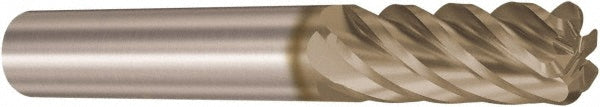

0.4724" 6-Flute Solid Carbide Corner Radius End Mill, HXT - Seco 03060304

Name: 0.4724" 6-Flute Solid Carbide Corner Radius End Mill, HXT - Seco 03060304
Brand: Seco
SKU: 03060304
Price: 251.75 USD
Availability: InStock

MFR# 03060304Series JS720

$251.75List $306.60 Save 17%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes6

MaterialSolid Carbide

CoatingHXT

Description

The Seco 03060304 is a 0.4724 6-flute Solid Carbide (Submicron) corner radius end mill with a HXT finish for longer tool life. Suited for stainless steel, high temperature alloy. Series JS720.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishHXT

Coolant throughNo

Corner radius0.0394

Corner radius tolerance-0.02 to 0.02 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix styleHigh

Length of cut1.0000

Length typeShort

Material applicationStainless Steel; Superalloy

Material gradeSubmicron

Material removal typeRoughing

Mill diameter0.4724

Mill diameter tolerance-0.03 to -0.05 mm

Number of flutes6

Overall length (mm)83.00

Primary workpiece materialStainless Steel; High Temperature Alloy

Shank diameter (mm)12.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
