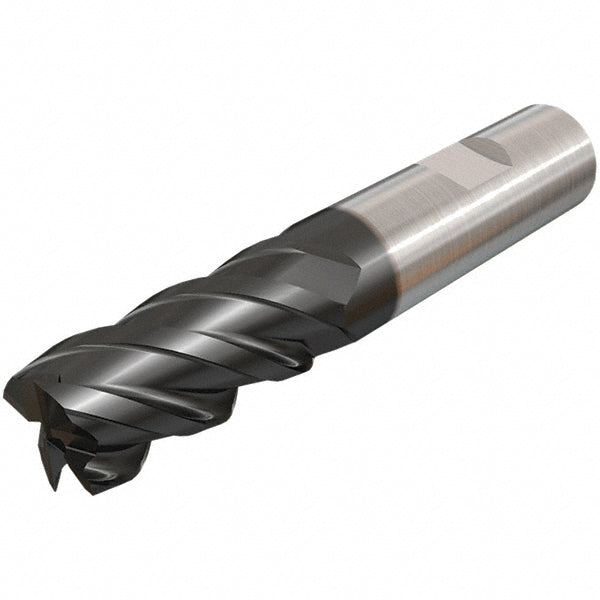

0.1969" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620730

Iscar

0.1969" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620730

MFR# 5620730

$45.83List $58.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5620730 is a 0.1969 4-flute Solid Carbide (Submicron Grain) square end mill. 0.5512 length of cut.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut0.5512
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeSubmicron Grain
Mill diameter0.1969
Mill diameter tolerance-0.020 to 0.038 mm
Number of flutes4
Overall length (mm)50.00
Shank diameter (mm)5.00
Shank diameter tolerance0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
