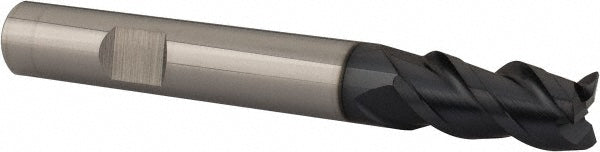

3/8" 3-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620936

Iscar

3/8" 3-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620936

MFR# 5620936

$91.04List $116.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5620936 is a 3/8 3-flute Solid Carbide (Submicron Grain) square end mill. 3/4 length of cut, 3 overall length.

Specifications

CentercuttingYes
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in3/4
Length typeRegular
Material gradeSubmicron Grain
Mill diameter in3/8
Number of flutes3
Overall length in3
Shank diameter in3/8
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
