Iscar

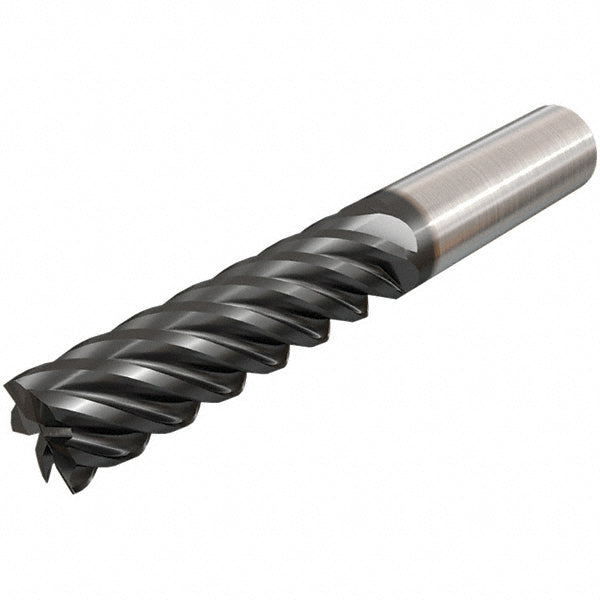

3/4" 6-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620967
MFR# 5620967
$585.24List $750.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes6
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5620967 is a 3/4 6-flute Solid Carbide (Submicron Grain) square end mill. 2-1/2 length of cut, 5 overall length.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in2-1/2
Length of cut range2.0000+
Material gradeSubmicron Grain
Mill diameter in3/4
Number of flutes6
Overall length in5
Reach length2.5000
Shank diameter in3/4
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
