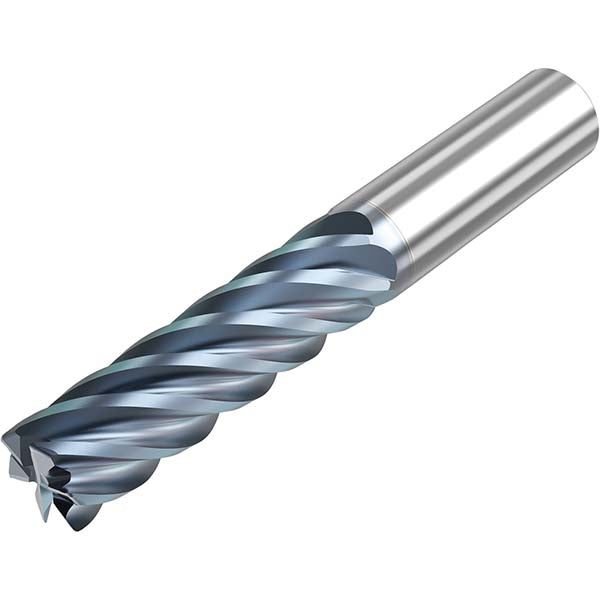

3/4" 6-Flute Solid Carbide Corner Radius End Mill, HTA - Seco 10008094

Seco

3/4" 6-Flute Solid Carbide Corner Radius End Mill, HTA - Seco 10008094

MFR# 10008094Series S638R

$572.11List $721.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes6
MaterialSolid Carbide
CoatingHTA

Description

The Seco 10008094 is a 3/4 6-flute Solid Carbide corner radius end mill with a HTA finish for longer tool life. 2-1/2 length of cut, 5 overall length. Series S638R.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishHTA
Coolant throughNo
Corner radius0.0300
Corner radius tolerance+0.00100 to -0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in2-1/2
Length typeStandard
Mill diameter in3/4
Mill diameter tolerance+0.000100/-0.002000 in
Number of flutes6
Overall length in5
Overall length tolerance+0.0600/-0.0600 in
PitchClose
Shank diameter in3/4
Shank diameter tolerance-0.0001 - -0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexNo
