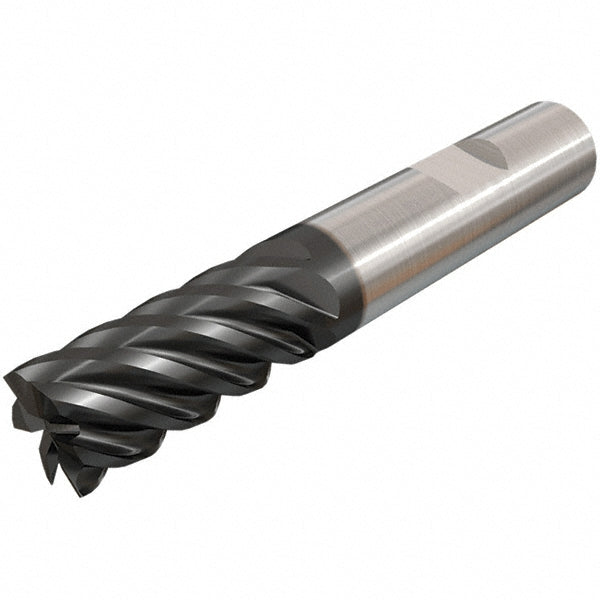

0.2362" 6-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5621229

Iscar

0.2362" 6-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5621229

MFR# 5621229

$55.68List $71.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5621229 is a 0.2362 6-flute Solid Carbide (Submicron Grain) square end mill. 0.6299 length of cut.

Specifications

CentercuttingYes
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut0.6299
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeSubmicron Grain
Mill diameter0.2362
Mill diameter tolerance-0.025 to 0.047 mm
Number of flutes6
Overall length (mm)57.00
Shank diameter (mm)6.00
Shank diameter tolerance0.000/-0.009 mm
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
