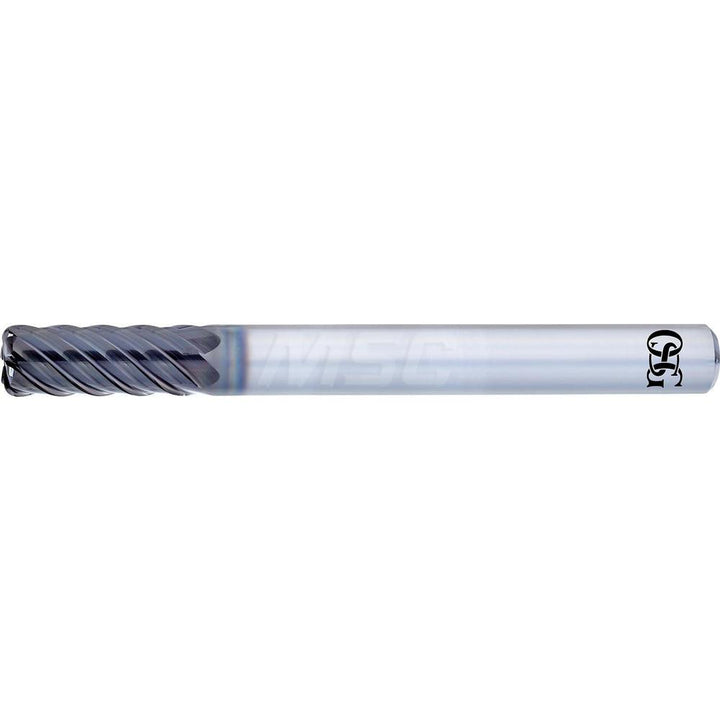

0.2362" 6-Flute Solid Carbide Corner Radius End Mill, Duarise - OSG 8549875

MFR# 8549875Series 8570

$94.11List $120.69 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes6

MaterialSolid Carbide

CoatingDuarise

Description

The OSG 8549875 is a 0.2362 6-flute Solid Carbide corner radius end mill with a Duarise finish for longer tool life. Suited for steel, hard material. Series 8570.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDuarise

Coolant throughNo

Corner radius (mm)0.50

Corner radius tolerance0.00 to -0.02 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut0.6250

Length typeRegular

Material applicationSteel; Hard Material

Material removal typeFinishing

Mill diameter0.2362

Mill diameter tolerance0.00 to -0.02 mm

Number of flutes6

Overall length (mm)60.00

PitchClose

Primary workpiece materialSteel; Hard Material

Shank diameter (mm)6.00

Shank diameter toleranceh4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
