Iscar

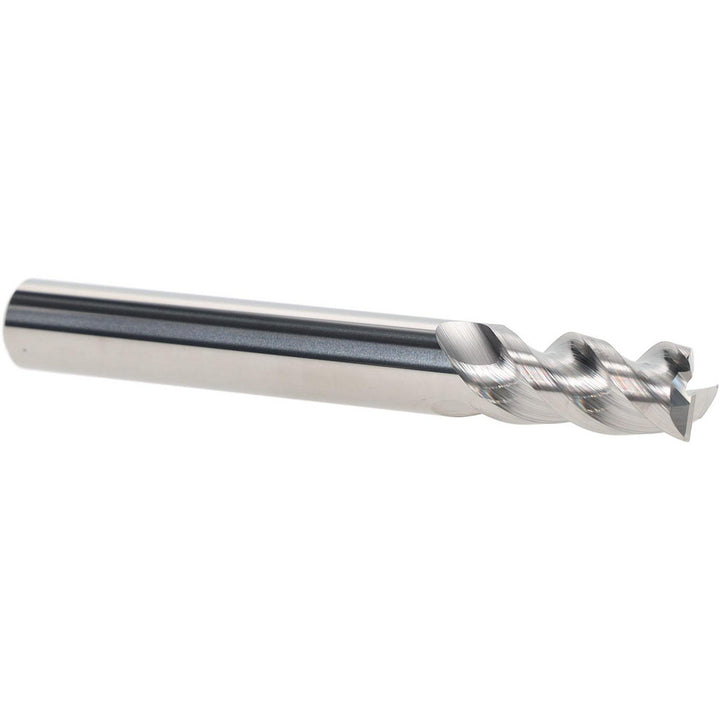

3/8" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5622185

MFR# 5622185Series ECAI-B-3

$79.34List $101.60 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

The Iscar 5622185 is a 3/8 3-flute Solid Carbide (Fine Grain) corner radius end mill. Suited for non-ferrous metal. 3/4 length of cut, 3 overall length. Series ECAI-B-3.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0080

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut in3/4

Length typeMedium

Material applicationNon-Ferrous Metal

Material gradeFine Grain

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter toleranceh6

Number of flutes3

Overall length in3

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in3/4

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
