0.3750" 4-Flute Solid Carbide Roughing End Mill, TiAlN - Iscar 5622304

Iscar

0.3750" 4-Flute Solid Carbide Roughing End Mill, TiAlN - Iscar 5622304

MFR# 5622304Series Solid Mill

$102.68List $131.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

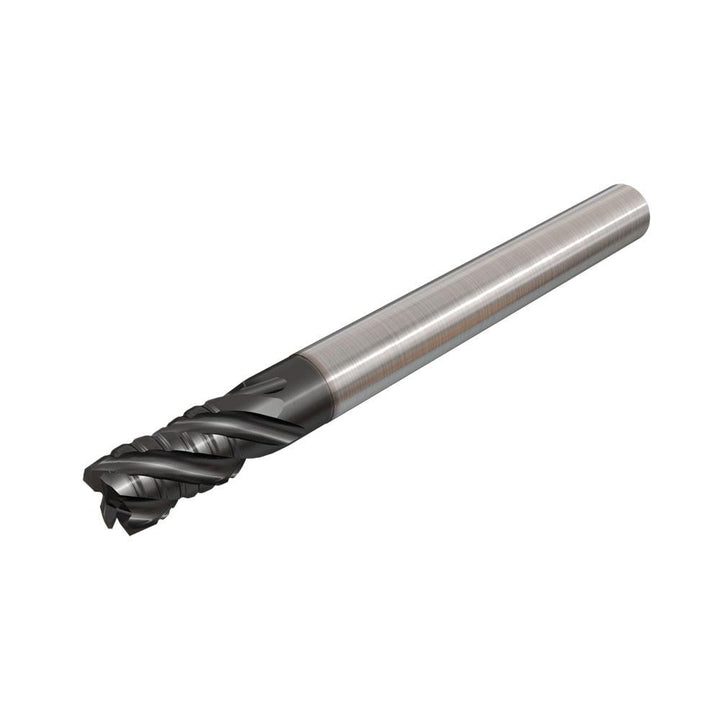

The Iscar 5622304 is a 0.3750 4-flute Solid Carbide (Submicron) roughing end mill with a TiAlN finish for longer tool life. Series Solid Mill.

Specifications

CentercuttingNo
Chamfer angle45
Chamfer width0.0150
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.7500
Length typeRegular
Material gradeSubmicron
Maximum helix angle38
Mill diameter0.3750
Mill diameter frac in3/8
Number of flutes4
Shank diameter in3/8
Shank typeStraight-Cylindrical
Single or double endSingle
