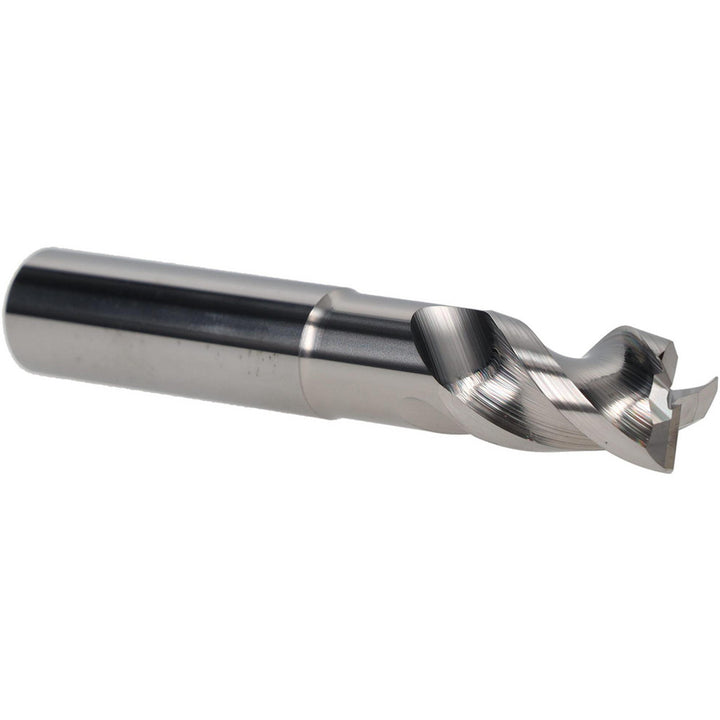

1/2" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5622919

Iscar

1/2" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5622919

MFR# 5622919Series ECAI-H3-CF

$130.87List $167.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide
CoatingUncoated

Description

The Iscar 5622919 is a 1/2 3-flute Solid Carbide (Fine Grain) corner radius end mill. Suited for non-ferrous metal. 3/4 length of cut, 3 overall length. Series ECAI-H3-CF.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Corner radius0.0200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleVariable
Length of cut in3/4
Length typeShort
Material applicationNon-Ferrous Metal
Material gradeFine Grain
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter toleranceh6
Number of flutes3
Overall length in3
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in1-1/2
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
