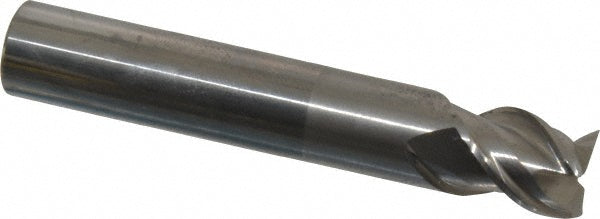

1/2" 3-Flute Solid Carbide Square End Mill - OSG 20430500

OSG

1/2" 3-Flute Solid Carbide Square End Mill - OSG 20430500

MFR# 20430500Series 2043

$87.33List $112.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide

Description

The OSG 20430500 is a 1/2 3-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 3 overall length. Series 2043.

Specifications

CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Neck diameter0.4960
Number of flutes3
Overall length in3
Reach length in1-3/8
Shank diameter in1/2
Variable helixNo
Variable indexNo
