Iscar

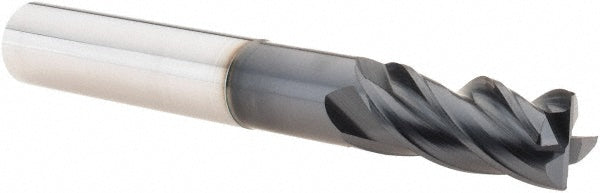

0.4724" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Iscar 5623017

MFR# 5623017Series EC-H4-L/M/XL-CFR

$225.34List $288.60 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Iscar 5623017 is a 0.4724 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series EC-H4-L/M/XL-CFR.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0236

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleVariable

Length of cut0.5000

Length typeLong

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter0.4724

Mill diameter tolerancee8

Number of flutes4

Overall length (mm)95.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length (mm)50.00

Shank diameter (mm)12.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
