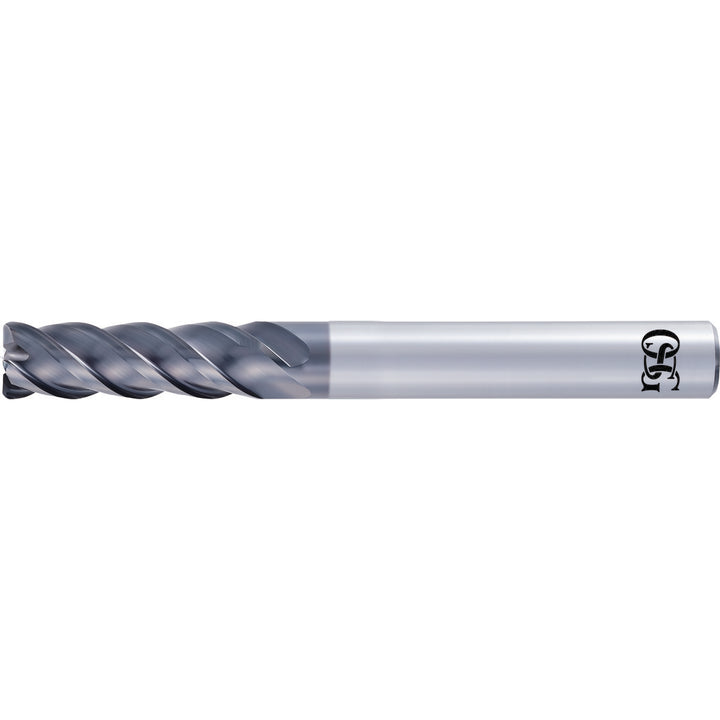

0.4724" 4-Flute Solid Carbide Corner Radius End Mill, Duarise - OSG 8556350

MFR# 8556350Series 8277

$189.77List $243.39 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingDuarise

Description

The OSG 8556350 is a 0.4724 4-flute Solid Carbide corner radius end mill with a Duarise finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. Series 8277.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDuarise

Coolant throughNo

Corner radius (mm)0.50

Corner radius tolerance0.03 to -0.03 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleVariable

Length of cut0.5000

Length typeLong

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter0.4724

Mill diameter tolerance0.00 to -0.02 mm

Number of flutes4

Overall length (mm)100.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter (mm)12.00

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
