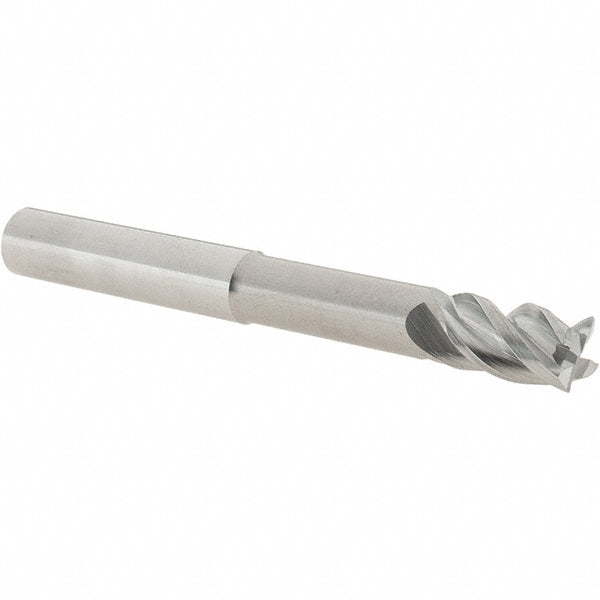

0.3937" 4-Flute Solid Carbide Corner Radius End Mill - Iscar 5623229

Iscar

0.3937" 4-Flute Solid Carbide Corner Radius End Mill - Iscar 5623229

MFR# 5623229Series ECA-H4-CF

$143.83List $184.20 Save 21%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The Iscar 5623229 is a 0.3937 4-flute Solid Carbide (Fine Grain) corner radius end mill. Suited for non-ferrous metal. Series ECA-H4-CF.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Corner radius0.0079
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleVariable
Length of cut0.7500
Length typeLong
Material applicationNon-Ferrous Metal
Material gradeFine Grain
Material removal typeRoughing & Finishing
Mill diameter0.3937
Mill diameter toleranceh6
Number of flutes4
Overall length (mm)92.00
PitchNormal
Primary workpiece materialNon-Ferrous Metal
Reach length1.9685
Shank diameter (mm)10.00
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
