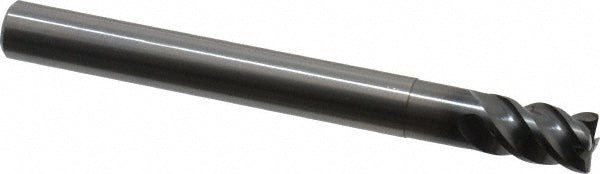

0.3937" 4-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 457110011

OSG

0.3937" 4-Flute Solid Carbide Corner Radius End Mill, WXS - OSG 457110011

MFR# 457110011Series 4571

$155.15List $198.99 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingWXS

Description

The OSG 457110011 is a 0.3937 4-flute Solid Carbide corner radius end mill with a WXS finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series 4571.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishWXS
Coolant throughNo
Corner radius0.0197
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleHigh
Length of cut0.7500
Length typeRegular
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material removal typeRoughing & Finishing
Mill diameter0.3937
Mill diameter tolerance0.00 to -0.02 mm
Neck diameter (mm)9.70
Number of flutes4
Overall length (mm)100.00
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length1.1820
Shank diameter (mm)10.00
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
