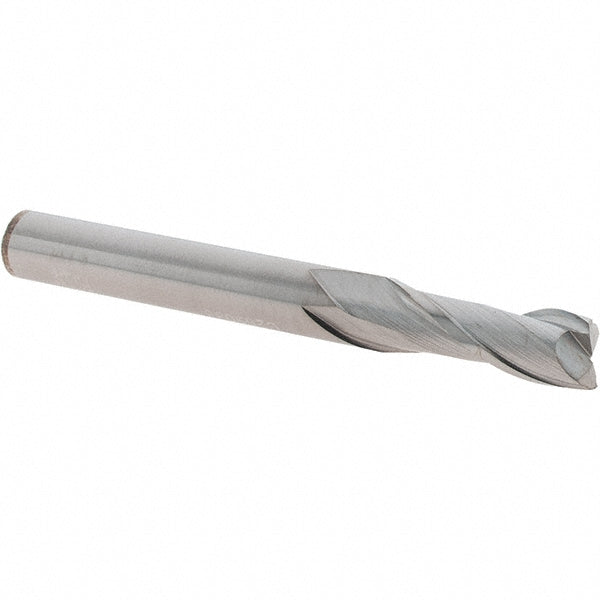

0.2165" 2-Flute Solid Carbide Square End Mill - Iscar 5650445

Iscar

0.2165" 2-Flute Solid Carbide Square End Mill - Iscar 5650445

MFR# 5650445

$30.53List $39.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide

Description

The Iscar 5650445 is a 0.2165 2-flute Solid Carbide (Fine Grain) square end mill. Suited for non-ferrous metal. 0.6299 length of cut.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.6299
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeFine Grain
Mill diameter0.2165
Mill diameter tolerance-0.020 to 0.038 mm
Number of flutes2
Overall length (mm)50.00
Primary workpiece materialNon-Ferrous Metal
Shank diameter (mm)5.50
Shank diameter tolerance0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
