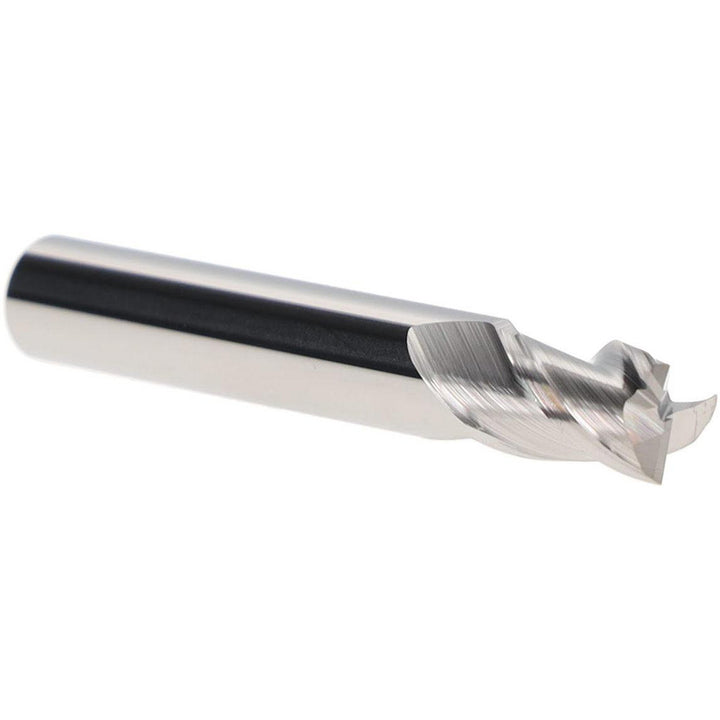

0.2362" 3-Flute Solid Carbide Square End Mill - Iscar 5650520

Iscar

0.2362" 3-Flute Solid Carbide Square End Mill - Iscar 5650520

MFR# 5650520

$21.79List $27.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide

Description

The Iscar 5650520 is a 0.2362 3-flute Solid Carbide (IC08) square end mill. Suited for non-ferrous metal. 0.3150 length of cut.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut0.3150
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeIC08
Mill diameter0.2362
Mill diameter tolerance-0.025 to 0.047 mm
Number of flutes3
Overall length (mm)39.00
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.2362
Shank diameter tolerance0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
