Kennametal

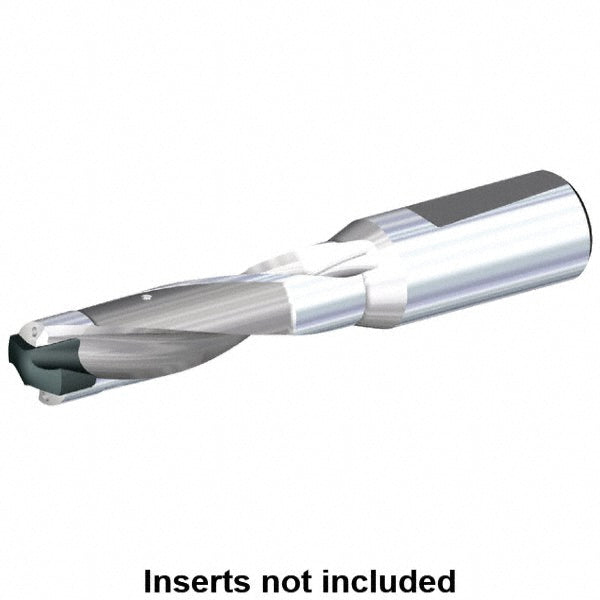

Indexable Drilling - Kennametal 1246034
MFR# 1246034Series KSEM
$566.57List $679.54
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1246034 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM2250
Coolant hole diameter0.1378
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length3.9370
Insert seat size4
Maximum drill depth (mm)72.00
Maximum drill depth range (mm)60.00 to 80.00
Maximum drill diameter0.9055
Minimum drill diameter0.8858
Overall length (mm)161
Shank diameter (mm)25.00
Shank length (mm)56.00
Shank typeWhistle Notch
