Kennametal

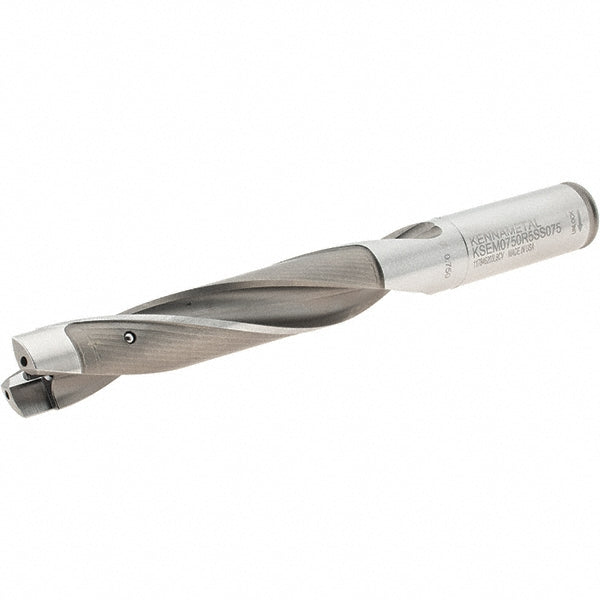

Indexable Drilling - Kennametal 1329703
MFR# 1329703Series KSEM
$532.63List $581.91
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1329703 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM0750
Coolant hole diameter0.1378
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length5.0917
Insert seat size2
Maximum drill depth3.9400
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.7697
Minimum drill diameter0.7500
Overall length7.25
Shank diameter (mm)19.05
Shank length2.0000
Shank typeStraight-Cylindrical
