Kennametal

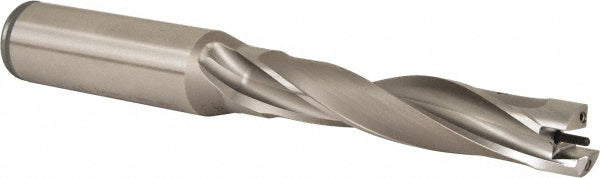

Indexable Drilling - Kennametal 1329733
MFR# 1329733Series KSEM
$532.63List $581.91
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1329733 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM0781
Coolant hole diameter0.1378
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length4.9669
Insert seat size2
Maximum drill depth3.9402
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.7874
Minimum drill diameter0.7815
Overall length8.1252
Shank diameter (mm)25.40
Shank length3.0000
Shank typeStraight-Cylindrical
