Kennametal

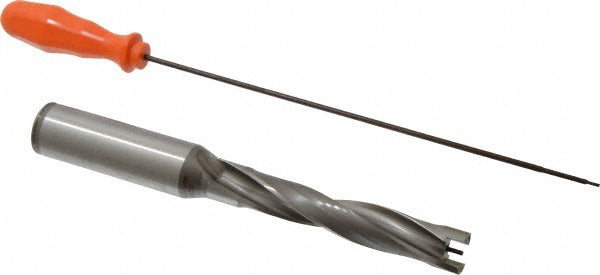

Indexable Drilling - Kennametal 1329734
MFR# 1329734Series KSEM
$562.80List $675.02
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1329734 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM0750
Coolant hole diameter0.1378
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length5.0917
Insert seat size2
Maximum drill depth3.9402
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.7697
Minimum drill diameter0.7500
Overall length8.25
Shank diameter (mm)25.40
Shank length3.0000
Shank typeStraight-Cylindrical
