Kennametal

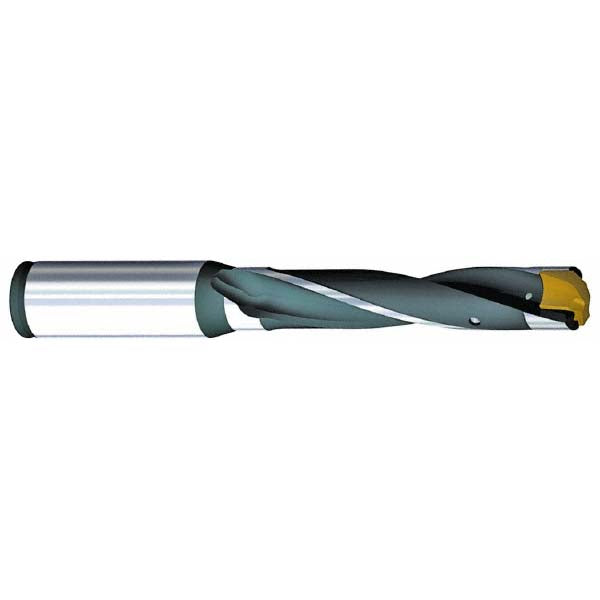

Indexable Drilling - Kennametal 1329937
MFR# 1329937Series KSEM
$714.19List $780.29
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1329937 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM1125
Coolant hole diameter0.1969
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length7.3417
Insert seat size7
Maximum drill depth5.9100
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter1.1449
Minimum drill diameter1.1252
Overall length10.75
Shank diameter (mm)31.75
Shank length3.2500
Shank typeStraight-Cylindrical
