Kennametal

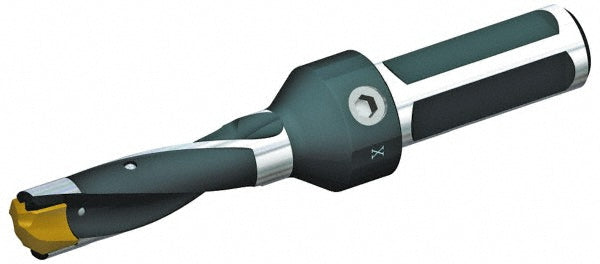

Indexable Drilling - Kennametal 1505112
MFR# 1505112Series KSEM
$494.82List $540.60
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1505112 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM0750
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length3.5098
Insert seat size2
Maximum drill depth2.3600
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.7697
Minimum drill diameter0.7500
Overall length6.25
Shank diameter (mm)19.05
Shank end coolant hole thread size in1/8-27
Shank length2.0000
Shank typeWeldon Flat
