Kennametal

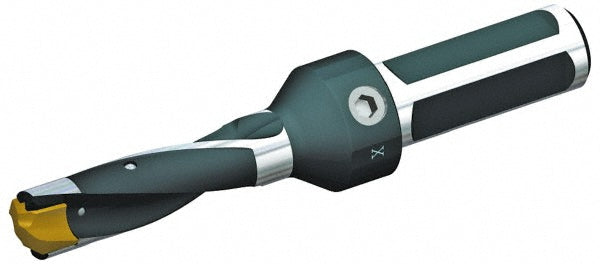

Indexable Drilling - Kennametal 1505125
MFR# 1505125Series KSEM
$650.96List $780.76
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1505125 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM1063
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length4.6252
Insert seat size6
Maximum drill depth3.3100
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter1.0823
Minimum drill diameter1.0626
Overall length8.75
Shank diameter (mm)31.75
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat
