Kennametal

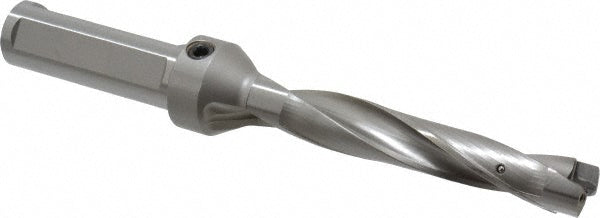

Indexable Drilling - Kennametal 1505179
MFR# 1505179Series KSEM
$597.93List $685.03
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1505179 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM0813
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length5.3752
Insert seat size3
Maximum drill depth4.3300
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.8323
Minimum drill diameter0.8126
Overall length9.25
Shank diameter (mm)25.40
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeWeldon Flat
