Kennametal

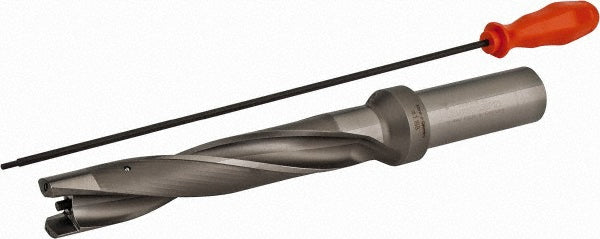

Indexable Drilling - Kennametal 1505194
MFR# 1505194Series KSEM
$925.20List $1,109.68
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1505194 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM1188
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length7.7752
Insert seat size8
Maximum drill depth6.3000
Maximum drill depth range6.0000 to 8.0000
Maximum drill diameter1.2071
Minimum drill diameter1.1874
Overall length (mm)298.45
Shank diameter (mm)31.75
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat
