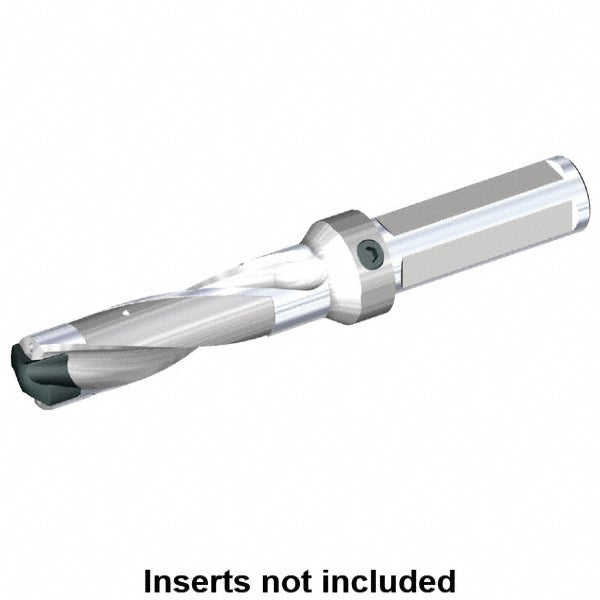

Indexable Drilling - Kennametal 1517238
MFR# 1517238Series KSEM
$584.70List $638.80
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1517238 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM0625
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio8xD
Flute length5.6315
Insert seat size1
Maximum drill depth5.0000
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter0.6449
Minimum drill diameter0.6252
Overall length8.25
Shank diameter (mm)19.05
Shank end coolant hole thread size in1/8-27
Shank length2.0000
Shank typeWeldon Flat
