Kennametal

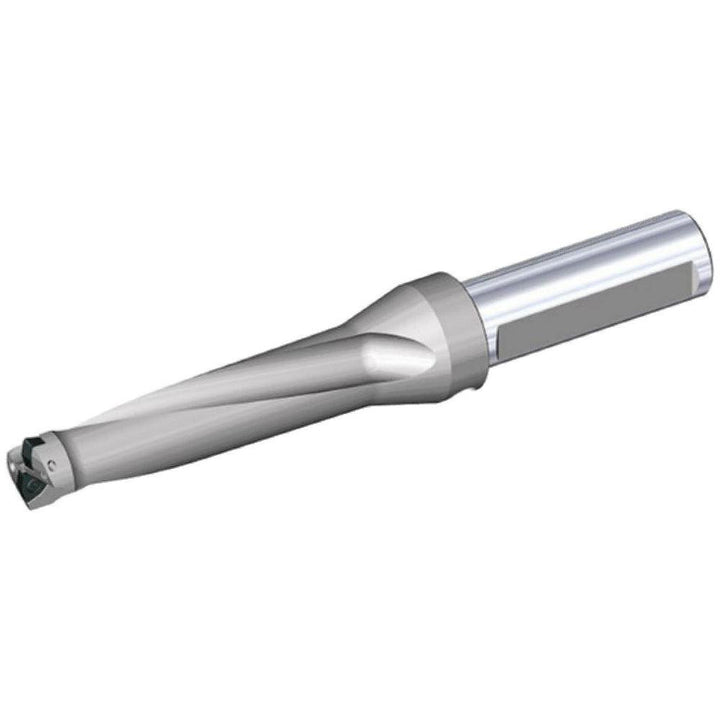

Indexable Drilling - Kennametal 1522106
MFR# 1522106Series DFT
$924.29List $1,108.60
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1522106 indexable drilling. Series DFT.
Specifications
Body length7.8750
Compatible drill styleDFT
Compatible insert size code06T3..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length6.0000
Insert compatibilityDFT06T3.
Insert lock screwM3.5-0.6x8.3T15
Insert size0.2600x0.1480
Maximum drill depth in6
Maximum drill depth range5.0000 to 7.0000
Maximum drill diameter in1-5/8
Number of drill inserts2
Overall length in11-5/8
Shank diameter in1-1/2
Shank end coolant hole thread size in1/4-18
Shank length3.7500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
