Kennametal

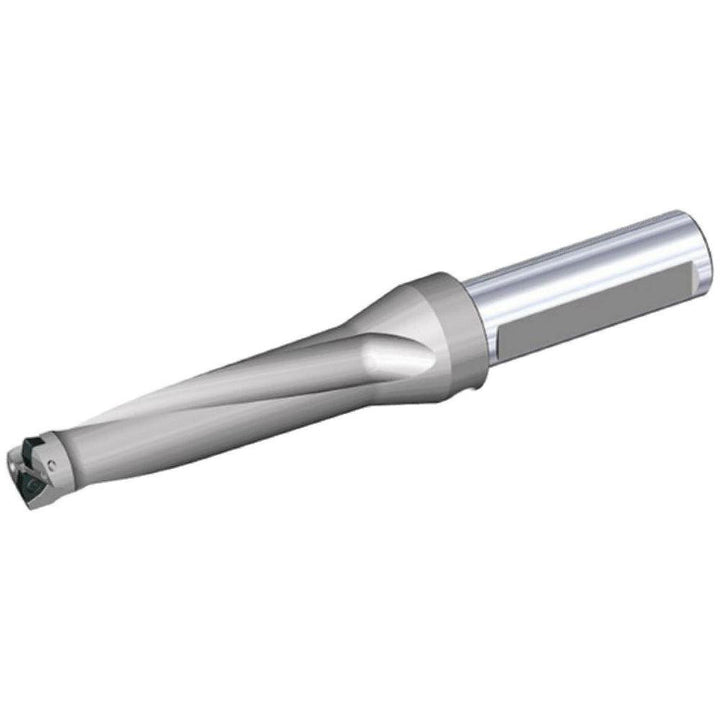

Indexable Drilling - Kennametal 1522132
MFR# 1522132Series DFT
$737.33List $884.36
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1522132 indexable drilling. Series DFT.
Specifications
Body length4.5000
Body side coolant hole thread size in1/8-27
Compatible drill styleDFT
Compatible insert size code0303..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length3.0000
Insert compatibilityDFT0303.
Insert lock screwM2.5-0.45x5.9T8
Insert size0.1560x0.1160
Maximum drill depth in3
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter0.8500
Number of drill inserts2
Overall length in7-3/4
Shank diameter in1-1/4
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
