Kennametal

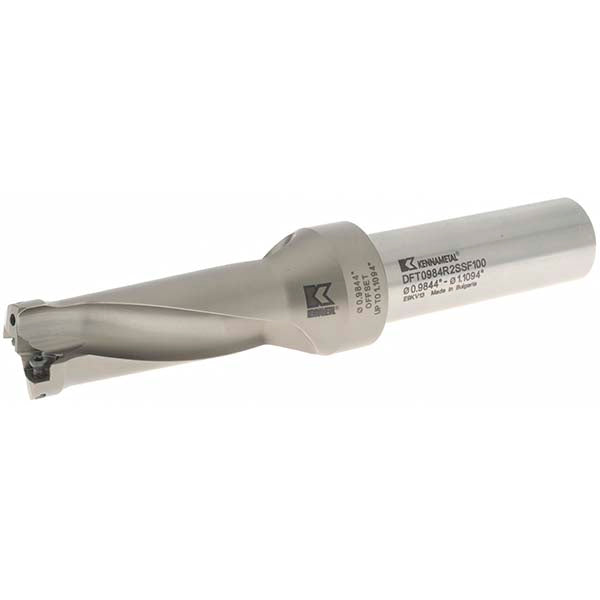

Indexable Drilling - Kennametal 1527687
MFR# 1527687Series Drill-Fix
$711.00List $852.77
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1527687 indexable drilling. Series Drill-Fix.
Specifications
Body length3.8800
Body side coolant hole thread size in1/8-27
Compatible drill styleDFT
Coolant hole thread size1/8-27
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2.5xD
Drill diameter0.9843
Insert compatibilityDFT 05T308
Insert size0.2080x0.1480
Maximum drill depth2.5000
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter1.1090
Number of drill inserts2
Shank diameter in1
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeStraight-Cylindrical
Tool materialSteel
