Kennametal

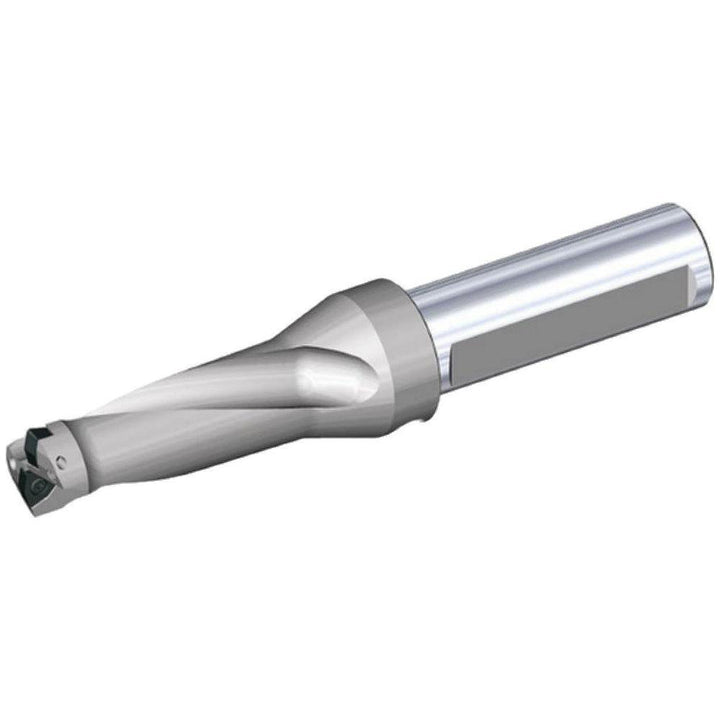

Indexable Drilling - Kennametal 1527691
MFR# 1527691Series DFT
$689.91List $827.47
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1527691 indexable drilling. Series DFT.
Specifications
Body length3.2500
Body side coolant hole thread size in1/8-27
Compatible drill styleDFT
Compatible insert size code0303..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2.5xD
Flute length1.9600
Insert compatibilityDFT0303.
Insert lock screwM2.5-0.45x5.9T8
Insert size0.1560x0.1160
Maximum drill depth1.9600
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter0.8813
Number of drill inserts2
Overall length in6-1/4
Shank diameter in1
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
