Kennametal

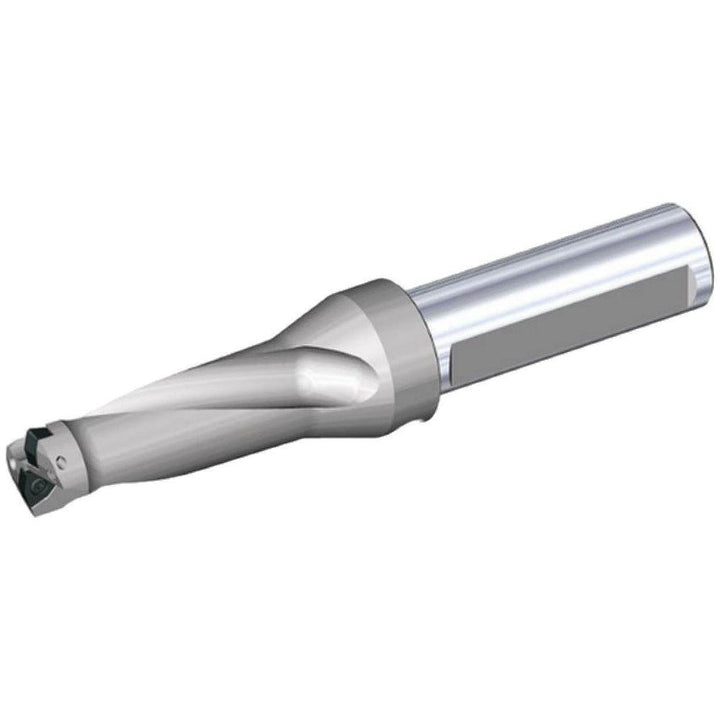

Indexable Drilling - Kennametal 1528349
MFR# 1528349Series DFT
$717.73List $784.15
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1528349 indexable drilling. Series DFT.
Specifications
Body length4.8750
Body side coolant hole thread size in1/8-27
Compatible drill styleDFT
Compatible insert size code06T3..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2.5xD
Flute length3.3000
Insert compatibilityDFT06T3.
Insert lock screwM3.5-0.6x8.3T15
Insert size0.2600x0.1480
Maximum drill depth3.3000
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter1.4370
Number of drill inserts2
Overall length in8-1/8
Shank diameter in1-1/4
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
