Kennametal

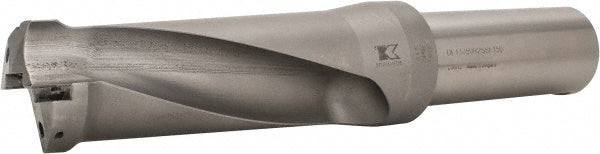

Indexable Drilling - Kennametal 1528403
MFR# 1528403Series DFT
$867.25List $947.50
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1528403 indexable drilling. Series DFT.
Specifications
Body length6.2500
Body side coolant hole thread size in1/8-27
Compatible drill styleDFT
Compatible insert size code0704..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2.5xD
Flute length4.3800
Insert compatibilityDFT0704.
Insert lock screwM3.5-0.6x12T15
Insert size0.3130x0.1870
Maximum drill depth4.3800
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter in1-7/8
Number of drill inserts2
Overall length in10
Shank diameter in1-1/2
Shank end coolant hole thread size in1/4-18
Shank length3.7500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
