Kennametal

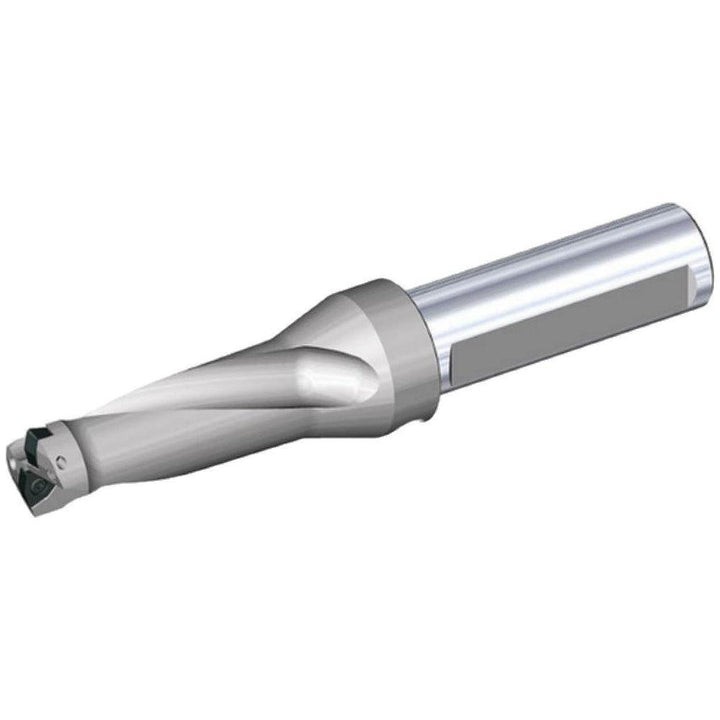

Indexable Drilling - Kennametal 1528405
MFR# 1528405Series DFT
$907.11List $991.05
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1528405 indexable drilling. Series DFT.
Specifications
Body length6.6250
Body side coolant hole thread size in1/8-27
Compatible drill styleDFT
Compatible insert size code0704..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2.5xD
Flute length4.7000
Insert compatibilityDFT0704.
Insert lock screwM3.5-0.6x12T15
Insert size0.3130x0.1870
Maximum drill depth4.7000
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter in2
Number of drill inserts2
Overall length in10-3/8
Shank diameter in1-1/2
Shank end coolant hole thread size in1/4-18
Shank length3.7500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
