Kennametal

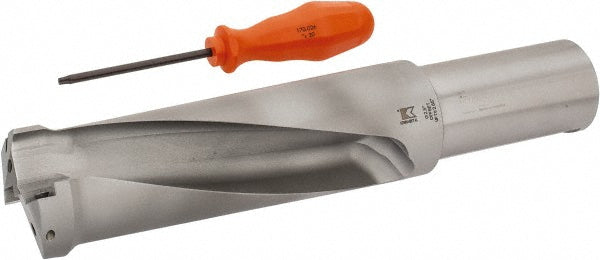

Indexable Drilling - Kennametal 1528423
MFR# 1528423Series DFT
$1,066.52List $1,279.18
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1528423 indexable drilling. Series DFT.
Specifications
Body length8.5000
Body side coolant hole thread size in1/8-27
Compatible drill styleDFT
Compatible insert size code0905..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2.5xD
Flute length6.2500
Insert compatibilityDFT0905.
Insert lock screwM5-0.8x12.5T20
Insert size0.3910x0.2070
Maximum drill depth in6-1/4
Maximum drill depth range5.0000 to 7.0000
Maximum drill diameter2.6500
Number of drill inserts2
Overall length in12-1/2
Shank diameter in2
Shank end coolant hole thread size in1/4-18
Shank length4.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
