Kennametal

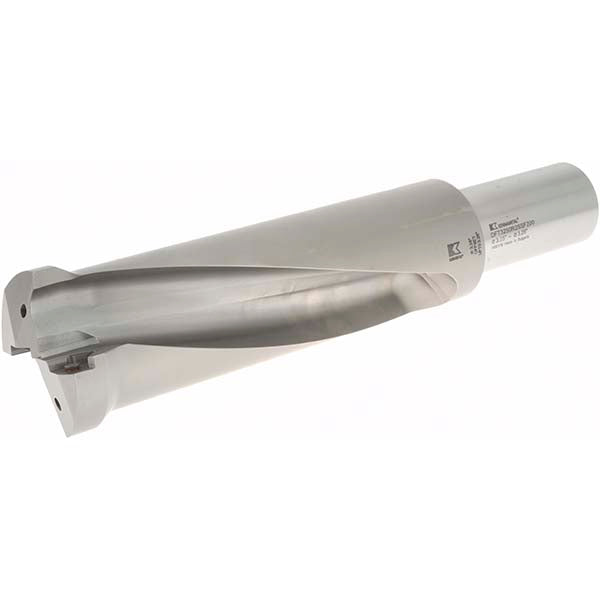

Indexable Drilling - Kennametal 1528427
MFR# 1528427Series DFT
$1,049.19List $1,146.29
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1528427 indexable drilling. Series DFT.
Specifications
Body length10.2600
Body side coolant hole thread size in1/8-27
Compatible drill styleDFT
Compatible insert size code1105..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2.5xD
Flute length8.1300
Insert compatibilityDFT1105.
Insert lock screwM5.5-0.9x9.5T20
Insert size0.4580x0.1941
Maximum drill depth8.1300
Maximum drill depth range7.0000 to 10.0000
Maximum drill diameter3.2600
Number of drill inserts2
Overall length14.2600
Shank diameter in2
Shank end coolant hole thread size in1/4-18
Shank length4.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
