Kennametal

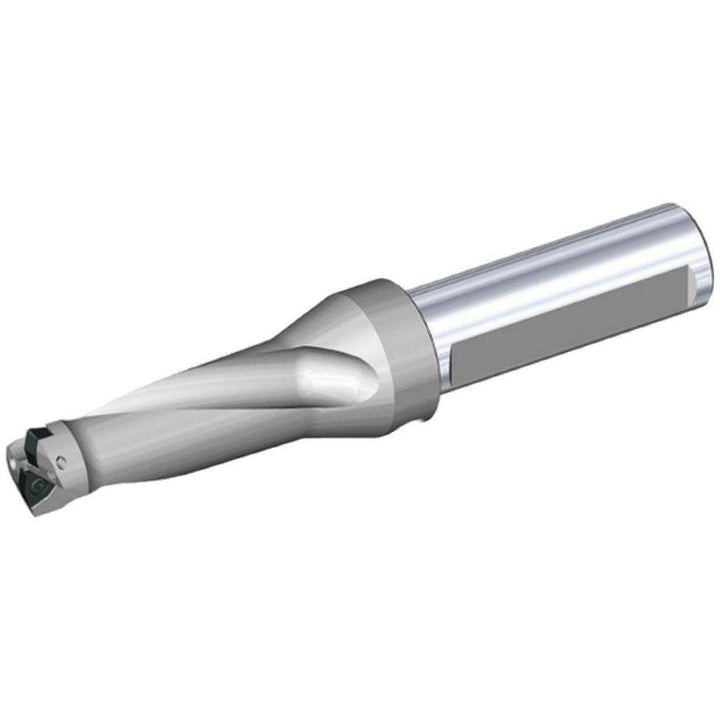

Indexable Drilling - Kennametal 1530245
MFR# 1530245Series DFT
$645.49List $705.22
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1530245 indexable drilling. Series DFT.
Specifications
Body length3.0000
Body side coolant hole thread size in1/8-27
Compatible drill styleDFT
Compatible insert size code0302..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2.5xD
Flute length1.6400
Insert compatibilityDFT0302.
Insert lock screwM2-04x4.8T6
Insert size0.1560x0.0960
Maximum drill depth1.6400
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter0.8060
Number of drill inserts2
Overall length in5
Shank diameter in3/4
Shank end coolant hole thread size in1/8-27
Shank length2.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
